OXYCOMBI Oxygen Generator

View Catalog

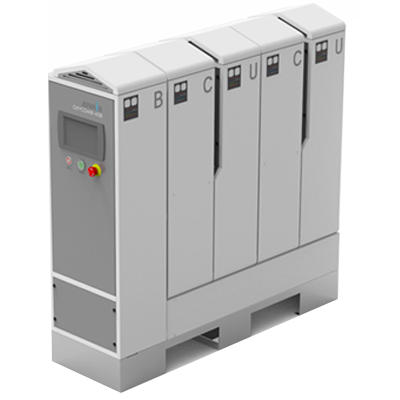

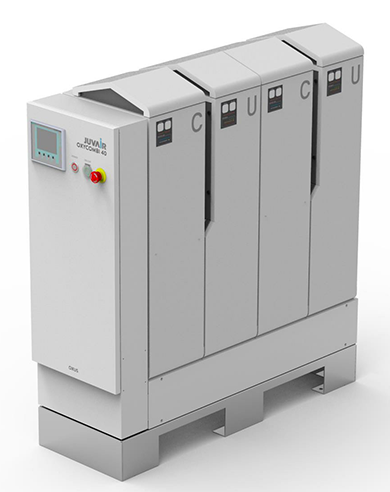

OXYCOMBI Oxygen Generator
OXYCOMBI

OXYCOMBI is an oxygen generation unit.

In one system, Oxyunit, which is an oxygen

and Compunit, which is a Comp unit,

and Controller are integrated. OxyUnit and

CompUnit integrated into one unit, generates

93% of oxygen independently without external

compressed air.

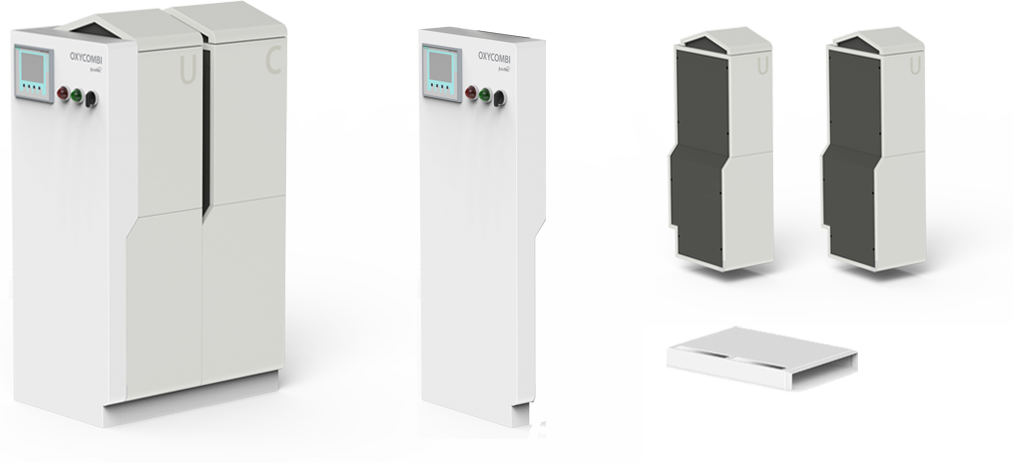

Composition of OXYCOMBI

OXYCOMBI is composed of the parts of JuvAir. It consists of Controlunit, Oxyunit, Compunit, and Frameunit.

Composition of OXYCOMBI
Easy to assemble
5-Phase
Piping and Wiring
Easy to assembling Oxygen Generator Phase#1

Phase 1
Place Frame in the
installation place

Oxygen Generator Phase#2 Assemble ControlUnit and Frame

Phase 2
Assemble ControlUnit
and Frame

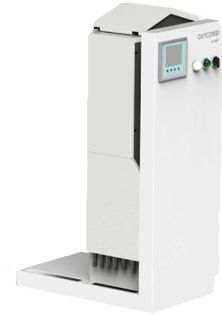

Oxygen Generator Phase#3 Mount Oxyunit

Phase 3
Mount Oxyunit

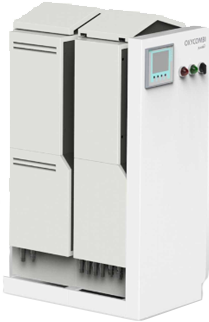

Oxygen Generator Phase#4 Mount Compunit

Phase 4
Mount Compunit

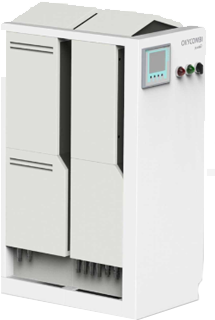

Oxygen Generator Phase#5 Piping and Wiring

Phase 5
Piping and Wiring

OXYCOMBI Series

Oxycombi series is composed according to the number of Oxyunit and Compunit.

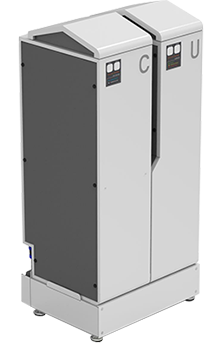

OXYCOMBI Series OXYCOMBI-20 1.2m3/h(20Lpm)

OXYCOMBI-20
1.2m3/h(20Lpm)

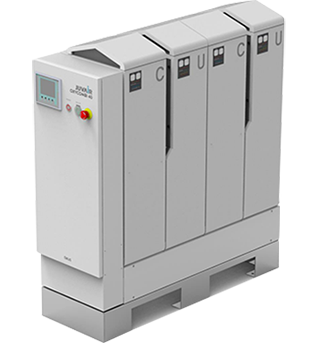

OXYCOMBI Series OXYCOMBI-40 2.4m3/h(40Lpm)

OXYCOMBI-40
2.4m3/h(40Lpm)

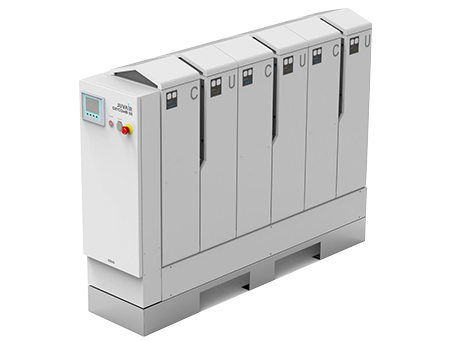

OXYCOMBI Series OXYCOMBI-60 3.6m3/h(60Lpm)

OXYCOMBI-60
3.6m3/h(60Lpm)

OXYCOMBI Specification
specifications
OXYCOMBI-020
OXYCOMBI-040
OXYCOMBI-060
OXYCOMBI Series OXYCOMBI-20 1.2m3/h(20Lpm)
OXYCOMBI Series OXYCOMBI-40 2.4m3/h(40Lpm)
OXYCOMBI Series OXYCOMBI-60 3.6m3/h(60Lpm)
Oxygen
Volume
20 Lpm or1.2 Nm 3/h at 21.7 psi (1.5 bar) 40 Lpm or 2.4 Nm 3/h at 21.7 psi (1.5 bar) 60 Lpm or 3.6 Nm 3/h at 21.7 psi (1.5 bar)
Oxygen
Purity
93% (±3%) 93% (±3%) 93% (±3%)
Oxygen
Pressure
21.7 psi (1.5 bar) 21.7 psi (1.6 bar) 21.7 psi (1.7 bar)
Voltage AC
230V
220-240 VAC, 50-60 Hz 220-240 VAC, 50-61 Hz
Power
Consumption
1.2Kw 2.5kW 4.2
Noise 60dB(A) 65dB(A) Under 85%
Oxygen
Dew Point
-60℉(-51℃) -60℉(-51℃) -60℉(-52℃)
Weight 60Kg 155Kg 215Kg
Dimensions
(WxHxD,mm)
340 x 810 x 550 1100 x 1200 x 360 1500 x 1200 x 360
