Juvair

Indoor Air Quality Monitor & Controller: The best IAQ(Indoor Air Quality) controller ever including oxygen supply function

Indoor Air Quality Monitor & Controller: Introducing the IAQ(Indoor Air Quality) controller with oxygen generator, which has
significantly improved functions than the conventional passive oxygen generator indoor unit.

We apply the latest indoor air quality measurement sensor and the best specification
fine dust filter and supply a large amount of clean oxygen.

Breathe clean air in the woods indoors from the stuffy indoor air.

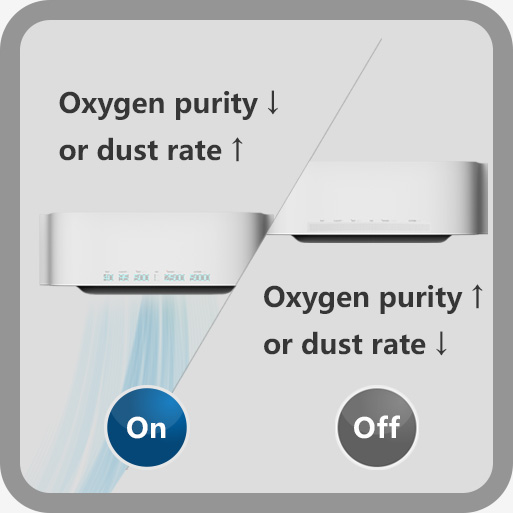

Automatic Control According to Indoor Air Quality: Once the target oxygen concentration is set, automatic control is possible.

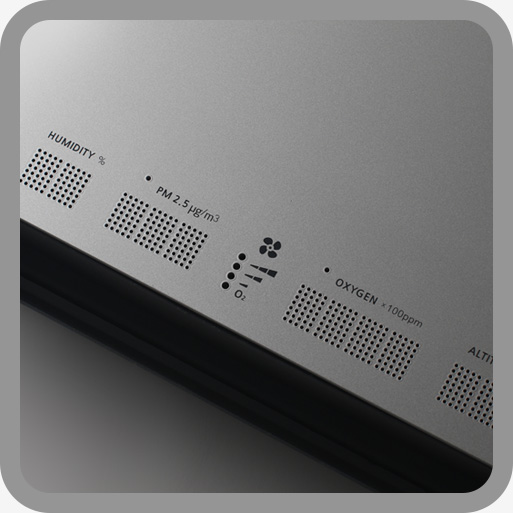

Accurate indoor air quality measurment: The sensor measures oxygen, carbon dioxide and ultrafine dust concentrations.


Measurement performance	type	IAQ Monitor / Controller
	Oxygen measurement range	0.0 ~ 30.0 %O2
	Oxygen sensor a ccuracy	±0.1% of the measuring range
	Oxygen sensor measuring type	Limiting Current Type Zirconia Oxygen Sensor
	PM 2.5 sensor measurement range	0~300 ug/m3
	PM 2.5 accuracy CO2 sensor measurement range	±10% of the measuring range
	PM 2.5 accuracy CO2 sensor measurement range	0~10,000 ppm
	CO2 accuracy	± 50 ppm
	Barometer measurement range	0 ~ 6,000 meter
	Barometer accuracy	±10 meter
	Temperature sensor measurement range	-40 ~ 85 °C
	Temperature accuracy	±1%
	Humidity sensor measurement range	0 ~ 100 %
	Humidity accuracy	±5%
Power performance	Power Supply	220VAC – 50/60Hz
Power performance	Power Consumption	65W
Air cleaning function	Usage area Rated air flow	40 m2
	Usage area Rated air flow	4.1m3/min
	Purification efficiency	95%
	Noise	Max. 45dB(A)
